High Precision 750W 2.4Nm AC Servo

High Precision 750W 2.4Nm AC Servo

GH-08075DC is 750W servo motor with 80 flange, rated torque is 2.4NM, rated speed is 2000RPM. compared to 09075DC , same rated power with higher rated torque.
Send Inquiry

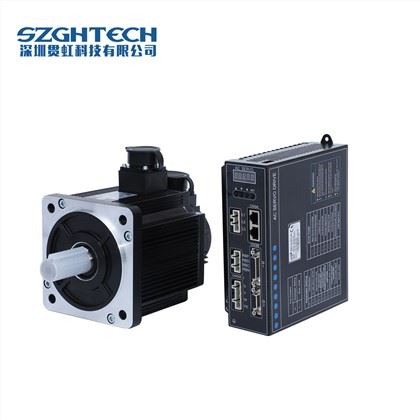

High precision Servo Drivers 750W 2.4Nm in AC Servo Motor kit for Machine Matched CNC Controller

Haa3dc96ae07547a6b2fa4dc2dd160083x

Features

Compared to 09075DC , same rated power with higher rated torque. There is a type servo driver, GH-SD2010 that matching for 750W servo motor.


This series motor adopts optimized electromagnetic design, low electromagnetic noise, stable operation, high efficiency. Strong overload capacity, reliable operation of 150% rated power for 30 minutes, impact resistance, long life; Adopt imported high-precision bearing and high-precision rotor dynamic balancing process, ensure the motor running in the maximum speed range of stability and reliability, small vibration, low noise.



Motor ModelSZGH-09075DC
Rated Power(W)750
Rated Voltage(V)220
Rated Crrent(A)3.0
Rated Speed(RPM)3000
Rated Torque(NM)2.4
Peak Torque(NM)7.1
Voltage Constantv10r/min51
Torque Coefficient(NM/A)0.8
Rotor Inertia（Kg.m²）2.45*10
Line-Line Resistance（Ω）3.2
Line-Line Inductance(mH)7
Machanical Time-Constant(Ms)2.2
Encoder Resolution(PPR)2500
Insulation ClassClass B
Safety ClassIP65
The Operating of Evironmental ConditionTemperature:-20℃~+45℃ Humidity Below 90%RH(No drawing)
Weight(KG)3.1



8(001)

9(001)

10

11

_20210817162726

H6aada374ce7d45d883021e74cc0b9923f

H6aada374ce7d45d883021e74cc0b9923f

]BVIN0(GRPITID%ZGU37~R5

_20210813174452

FAQ

Q: May I know what’s the nearest airport from your company?

A: First Shenzhen Airport, then Guangzhou or Huizhou airport, welcome to visit us.

Q: When can I get the quotation?

A: We usually quote within 3 hours after we get your inquiry. If you are very urgent to get the price, please tell us so that we will regard your inquiry priority.

Q: What about the lead time for mass production?

A: 6-8 working days for mass production. It depends on your quantity, and we will try our best to meet your needs.


If you have any other question about our High precision 750W 2.4Nm in AC Servo, pls feel free to contact us as below!
