GH-08075BC is 750W servo motor with 80 flange, rated torque is 3.5NM, rated speed is 2000RPM. compared to 09075DC , same rated power with higher rated torque. There is a type servo driver, GH-SD2010 that matching for 750W servo motor.

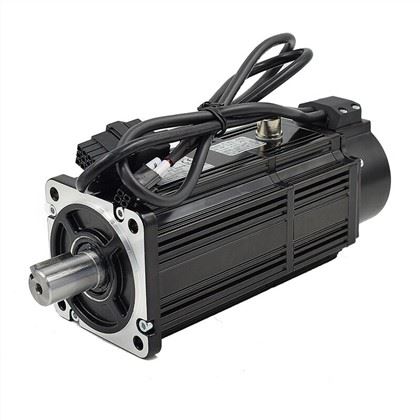

750W 3.5Nm 2000rpm Servo motor


GH-08075BC is 750W servo motor with 80 flange, rated torque is 3.5NM, rated speed is 2000RPM. compared to 09075DC , same rated power with higher rated torque. There is a type servo driver, GH-SD2010 that matching for 750W servo motor.
Send Inquiry

High precision Servo Drivers.Servo Motor 750W 3.5Nm 2000rpm Servo for Machine Matched CNC Controller 1%1AH[DSI4(KRDN4Y5EQ@MM

Features

GH-08075BC is 750W servo motor with 80 flange, rated torque is 3.5NM, rated speed is 2000RPM. compared to 09075DC , same rated power with higher rated torque.


Application

CNC Machinery,printing equipment, packaging equipment, textile equipment, laser processing equipment,robotics, automated production lines, such as processing precision, processing efficiency and reliability, and other requirements of the relatively high equipment.


Motor Model SZGH-08075BC
Rated Power(W)750
Rated Voltage(V)220
Rated Crrent(A) 3.0
Rated Speed(RPM) 3000
Rated Torque(NM)3.5
Peak Torque(NM)10.5
Voltage Constantv10r/min 71
Torque Coefficient(NM/A)1.71
Rotor Inertia（Kg.m²）2.63*10
Line-Line Resistance（Ω）3.65
Line-Line Inductance(mH) 8.8
Machanical Time-Constant(Ms)2.4
Encoder Resolution(PPR) 2500
Insulation Class Class B
Safety ClassIP65
The Operating of Evironmental Condition Temperature:-20℃~+45℃ Humidity Below 90%RH(No drawing)
Weight(KG)3.9


8(001)

9(001)

10

11

20210119100508f638db1644574756bc361fba8e4f6cae(001)

20210119100512f45f2f66edff40adb05e79916dfd372c(001)

2021011910051408fa774b887247b988421343478d4694(001)
