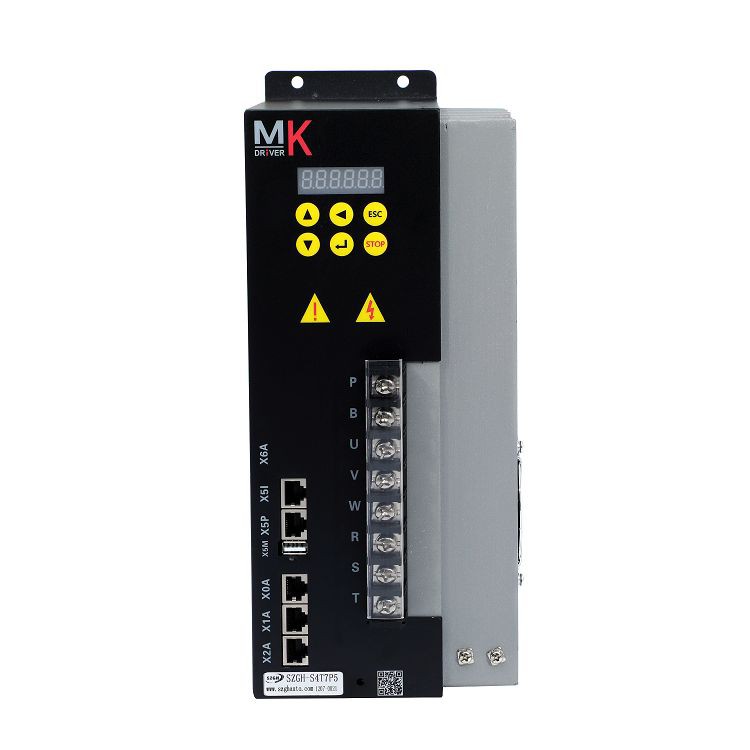

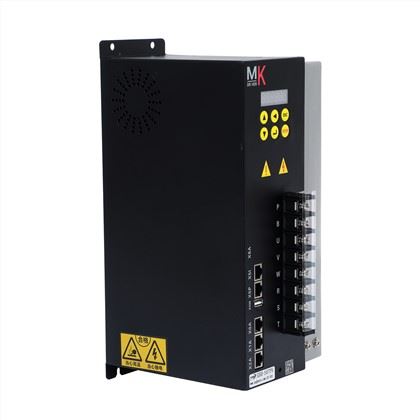

22KW Servo Spindle Driver


Products comply with international standard,improved with CE certification. Setup mulitiple protection circuit,the comprehensive protection of safety equipment.
Send Inquiry


Our Services

 1. Good knowledge on different market can meet special requirements.

2. Real manufacturer with our own factory located in hunan China

3. Strong professional technical team ensure to produce the top quality products.

4. Special cost control system ensure to provide the most favorable price.

5. Rich experience technology equipment.

Input Power

Rated Voltage/frequency

Three-phase 380V/480V;50Hz/60Hz

Allowable Voltage range

+10%~-15%

Allowable Frequency Fluctuation

± 5%

Control Features

Control Mode

PWM Vector Control

Speed Adjustment Range

0.01~500Hz

Speed Stabilization Precision

± 0.1%

Acceleration/Deceleration time

0.05~3000Hz/s

Torque Control

200% Rated torque output;Torque precision ±5%

Position Control Precision

±1 Pulse

Braking Mode

Powered Braking

Overload Capacity

Twice Overload

I/Os

Digital Input

10 points , NPN or PNP(Optional)

Digital Output

6 points , NPN

Relay Output

2pcs ,DC30V/1A Or AC250V/1A

Analog Input

2 inputs, A0:±10V; A1: 0~±10V Or 4~20mA
(Optional)

External Pulse Input

1 type ,ABZ phase pulse ,Pulse+Direction Or
CW (Optional)

Motor Encoder Input

1 type,RS422 TTL , Rotatry Connector(Optional)

Motor Encoder Output

1 pcs,RS42TTL ,Output Frequency Range:
0~1MHz

WorkingEnvironment

Operating Site

The product shall be mounted verticlly in the
electric control cabinet with good ventilation.
The product shall be installed in the environment
free from direct sunligh ,dust,corrosive gas,
sombustible gas,oil mist,steam and drip

Ambient Temperature

-10℃ ~ +45℃

Humidity

5~90%, not allow condensing


16.6

FAQ

1.Q. Can we print our own logo?

A. Yes,we offer OEM service.



Q: Can you do OEM and ODM?

A: Yes, OEM and ODM are both acceptable. The material, color, style can customize, the basic quantity we will advise after we discuss.



Q: Can we use our own logo?

A: Yes, we can print your private logo according to your request.

Send Inquiry

FAQ

The following are the common questions we have collected about CNC Controller.
1. Q: What services do you provide?
+
A: We offer one-stop service. We can customize the most suitable processing solution based on your ideas and product drawings. We have partnerships with major shipping companies such as DHL, FEDEX, and UPS to ensure timely delivery. Products can be delivered to you within 3-6 business days.
2. Q: What can you do for CNC machine tool retrofit and upgrade?
+
A: We can provide a complete CNC system. Our controller supports ATC and PLC and runs G-code. Support multiple languages, Russian, Spanish, English, Chinese, etc.The kit includes the controller, spindle servo motor and driver, servo motor drivers for each feed axis, and all standard cables, user manuals, and wiring diagrams. Our CNC control system is fully connected before shipment and tested 3-5 times for plug-and-play operation.
3. Q: What is your after-sales service like?
+
A: Our professional after-sales engineers provide 24-hour, one-on-one, free service. You don't have to worry about any after-sales issues.
4. Q: What optional accessories are available for CNC machine tools?
+
A: You can choose different accessories based on your machining needs. CNC Lathe:Servo turret, hydraulic chuck, manual chuck, Parts Catcher, Tailstock，guide bush,Flying knife disc,Tailstock,living tool,bar feeder, chip conveyor, etc. CNC Milling Machine: Fourth and fifth axis CNC rotary tables,Tailstock,BT30/BT40 holder, tool setters, probes, etc.
5.Q: How do you maintain the machine?
+
A: You must receive safety training before use. Regularly clean chips, check the air supply/oil pressure, lubricate the guideways, and inspect tool wear.
