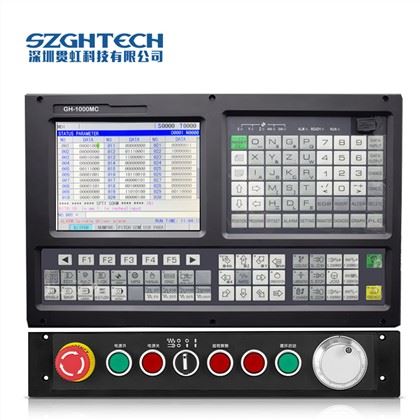

Similar Adtech 3 Axis Lathe Controller with 32bits Usb for Mach 3 customize linear guide heavy gantry Machine Turning Controller System

1000MC-3

Number of control axes	3 axes (X, Z, Y)
Minimum programming	0.001mm
Maximum programming	± 99999.999mm
Top speed	30m / min
Feed speed	0.001-15m / min
Manual continuous	One axis or simultaneous multi-axis
Interpolation method	Straight line, arc, thread interpolation
Tool offset	Length compensation, nose radius C compensation
Spindle functions	Gear, dual analog control, rigid tapping
Handwheel functions	Panel type, plug-in hand-held
Screen saver function	Screen saver function
Communication function	RS232, U disk interface
Compensation function	Knife compensation, between compensation, screw compensation, radius compensation
Program editing	Male / English, relative / absolute programming
Limit function	Software limit, hardware limit
Pre-reading function	Short line preprocessing 10,000 lines
Password protection	Multi-level password protection
Input and output	I / O point 24X24
PLC programming	The user is free to design PLC function
Acceleration and deceleration control	Linear acceleration and deceleration, the number of additions and subtractions
Encoder lines	Any setting
User macro program	Yes
Electronic gear functions	Yes
Number of control axes	3axes (X, Z, Y)
Minimum programming	0.001mm

Application: CNC Lathe & Turning Machinery and specially automatic equipment

The CNC controller refers to the program control system of the computer numerically controlling the machine tool. Able to logically process programs with control codes or other symbolic instructions, decode them by the computer, so that the machine tool executes the prescribed actions, and the blanks are processed into semi-finished parts through tool cutting, which greatly improves mold processing Productivity
