Top Cnc Lathe Controller For 3 Axis

CNC lathe Controller: 1)ATC function: Electric Turret/Binary Turret/Servo Turret/Special Turret 2)Threading Cycle: Following Mode/Interpolate Mode 3) Support Dual analog voltage(0~10V) & C-axis for Spindle servo(M800)

1000MC-3

Number of control axes	3 Axis
Minimum programming	0.001mm
Display	8.4 inch color screen
interface	USB+RS232 Communction Port
Maximum programming	± 99999.999mm
Top speed	30m / min
Feed speed	0.001-15m / min
Spindle functions	Gear, dual analog control, rigid tapping
Pre-reading function	Short line preprocessing 10,000 lines
Function	ATC+PLC and macro function
Encoder lines	Any setting
User macro program	Yes
Our Services	12 Months warranty；Provide professional CNC solutions；
Compensation function	Knife compensation, between compensation, screw compensation, radius compensation
Security function	Emergency stop, hardware travel limit, various stored travel checks, axis interlock, data backup and recovery
Simplified programming features	1) Single canned cycle, compound canned cycle, drilling/boring cycle, rigid tapping, direct input of drawing dimensions, automatic chamfering 2) Statement macro programming, blueprint programming, programming wizard, auxiliary programming, teaching

1.-&(1000TC)

3.-(1000TC)

4.-&(1000TC)

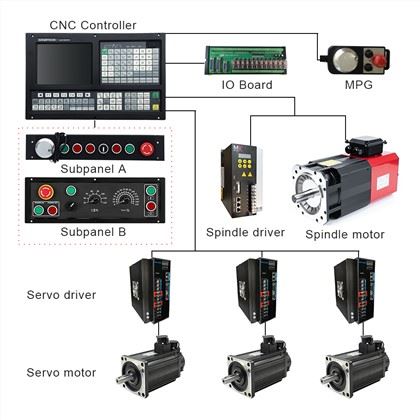

We can provide you with a complete set of customized CNC kits,

which is very convenient and efficient for you.

GH-1000TC

7.-()

8.-&&()

9.-&()

FAQ

Q: What if I am not sure which controller I need? What if I need some technical consult?

A: Please make sure you consult our sales before you decide to purchase, our goal is to provide you a complete and efficient CNC cutting solution.

Q: How do you pack the goods?

A: Our controllers are light and compact size, It is very easy to pack it up, we usually pack our goods with carton box with extra foam to absorb the shock. We will make sure the package will protect the goods 100% OK.

Q: How do you guarantee the quality?

A: We have the professional engineer to test the goods and make sure they are 100% working before they are dispatched.

If you have any other question about our cnc lathe controller kit, pls feel free to contact us as below.Any order requirement, pls do not hesitate, we must do good support to you! come on!
