Updated 2 Axis Cnc Controller Lathe

CNC lathe Controller: 1)With USB interface ,it supports file operation in flash disk,system configuration and software upgrade 2)Position Control Mode:Pulse+Direction/AB Phase,Dual Analog voltage output of 0~10V 3)Two sub-panels for choose,Panel A for MPG function,Panel B for band switch

1000MC-3

Number of control axes	2 axes
Minimum programming	0.001mm
Display	8.4 inch color screen
interface	USB+RS232 Communction Port
Maximum programming	± 99999.999mm
Top speed	30m / min
Feed speed	0.001-15m / min
Tool offset	Length compensation, nose radius C compensation
Spindle functions	Gear, dual analog control, rigid tapping
Limit function	Software limit, hardware limit
Pre-reading function	Short line preprocessing 10,000 lines
Password protection	Multi-level password protection
Compensation function	Knife compensation, between compensation, screw compensation, radius compensation
Acceleration and deceleration control	Linear acceleration and deceleration, the number of additions and subtractions
Function	ATC+PLC and macro function
Encoder lines	Any setting
User macro program	Yes
Menu	English menu
Produce time	5~7 days except for Customized logo or package

ATC function：Electric Turret/Binary Turret/Servo Turret/Special Turret

PLC functions:

1) Support PLC warning and PLC alarm.

2) Support multiply PLC programming (mostly 20), the current PLC programming can be chosen.

1.-&(1000TC)

3.-(1000TC)

4.-&(1000TC)

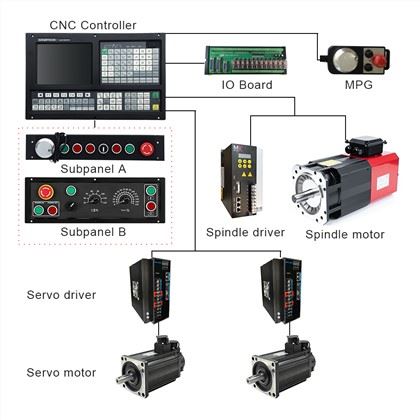

We can provide you with a complete set of customized CNC kits,

which is very convenient and efficient for you.

GH-1000TC

Multiple function:

It can reallize the drilling / boring,roughing of roungroove / rectangle roove, finishing of full circle / rectangle, continous drilling of straight line / rectangle / arc etc.

7.-()

8.-&&()

9.-&()

FAQ

1. who are we?
We are the cnc spare parts supplier with more than 10 years experience.

2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;

3.what can you buy from us?
servo motor,servo drive,cnc controller,planetary gearbox,gear and rack

4. why should you buy from us not from other suppliers?
We have 10 years automation sales and production experience, which can offer customer professional technical support.

5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,Express Delivery；
Accepted Payment Currency:USD,EUR,CNY;
Accepted Payment Type: T/T,L/C,D/P D/A,Western Union;
Language Spoken:English,Chinese

If you have any other question about our cnc lathe controller kit, pls feel free to contact us as below.Any order requirement, pls do not hesitate, we must do good support to you! come on!
