1)ATC function: Umbrella Type/Arm Type/Linear Type/Servo Type/Special Tool Magazine<br /> 2) Support Rigid Tapping: Following Mode/Interpolate Mode<br /> 3) Support Dual analog voltage(0~10V)& C-axis for Spindle servo<br /> 4) Support RTCP mode<br />

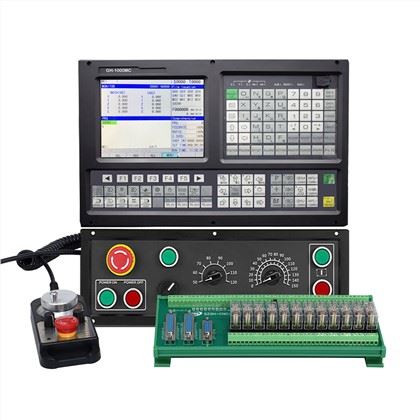

3 Axis CNC Milling Controller


1)ATC function: Umbrella Type/Arm Type/Linear Type/Servo Type/Special Tool Magazine
2) Support Rigid Tapping: Following Mode/Interpolate Mode
3) Support Dual analog voltage(0~10V)& C-axis for Spindle servo
4) Support RTCP mode
Send Inquiry

Mach3 CNC Milling Controller for plate drilling machine Video technical support

01

1) 3-5 Axis Fully English Type CNC lathe controller

2) 800x600 8.4 inch real color LCD displayer

3) Electric Turret & Binary code turret,Max: 99 pcs tools

4) Support ATC , Macro function and PLC function

5) Max speed is 60m/min, feeding speed is 24m/min,0.1um control precision

6) Adapted servo spindle can realize spindle continous position,rigid tapping,rigid screw processing

7) High anti-jamming switch power(100V-240VAC 50Hz/60Hz -> 24VDC)


Spindle axis functions:
1) Two channels 0V ~ 10V analog voltage output, support double spindle control
2) Spindle encoder: encoder lines can be set (100 p/r ~ 5000p/r)
3) Encoder and spindle’s transmission ratio: (1 ~ 255):(1 ~ 255)
4) Spindle ration: 50% ~ 120% eight stages real-time tunning in total
5) Spindle axis constant line speed control
6) Tapping circle, rigid tapping

Tool functions:
1)Tool length compensation
2)Tool point radius compensation (C type)

Precision compensation:
1)Thread pitch error compenstation: Compensation points, compensation interval, compensate original position can be set.
2）Backlash compensation: can set reverse interval to interpolation machine tool by fixed frequency or lifting speed mode.

PLC functions:

1）Two levels PLC programming, operation speed is 1.5μs/ step basic instruction; 4700 steps mostly, the cycle of the first level programming is 8ms.
2）Support PLC warning and PLC alarm.
3）Support multiply PLC programming (mostly 20), the current PLC programming can be chosen.
4）45 kinds of commands (10 kinds of basic commands, 35 kinds of function commands)

2）Support PLC warning and PLC alarm.
3）Support multiply PLC programming (mostly 20), the current PLC programming can be chosen.
4）45 kinds of commands (10 kinds of basic commands, 35 kinds of function commands)


Application : CNC Lathe & Turning Machinery and specially automatic equipment

QQ20210702093413

QQ20210701150818

QQ20210701150800




2021011910051408fa774b887247b988421343478d4694
