CNC Milling Controller: 1) Support Dual analog voltage(0~10V)& C-axis for Spindle servo 2) Support RTCP mode 3) Support Stepper/Increment/Absolute/EtherCAT/Powerlink Servo for Feeding Axes 4) Scanning Function & Follow Mode & Auto Tool Setter/Probe

Cnc Milling Controller &servo


CNC Milling Controller: 1) Support Dual analog voltage(0~10V)& C-axis for Spindle servo 2) Support RTCP mode 3) Support Stepper/Increment/Absolute/EtherCAT/Powerlink Servo for Feeding Axes 4) Scanning Function & Follow Mode & Auto Tool Setter/Probe
Send Inquiry





_20220707145050

Number of control axes5 axes
Minimum programming0.001mm
Maximum programming± 99999.999mm
Top speed30m / min
Feed speed0.001-15m / min
Manual continuousOne axis or simultaneous multi-axis
Screen saver functionScreen saver function
Program editingMale / English, relative / absolute programming
Pre-reading functionShort line preprocessing 10,000 lines
Compensation functionKnife compensation, between compensation, screw compensation, radius compensation
Communication functionRS232, U disk interface
Program editingMale / English, relative / absolute programming

Tool functions:

1)Tool length compensation
2)Tool point radius compensation (C type)

Simplified programming features

Fixed cycle, compound cycle, drilling cycle, rigid tapping, automatic chamfering, statement-based macro programming, indexing table indexing function


1.-&(1000MC)(1)


3.-(1000MC)

4.-&(1000MC)

GH-1000TC

Detailed case: RTCP five-axis linkage -- box type:

  N74@9}$4PPWY)E77}~9T}%I

mold:

 `Z43{MIQ5US}9G4{V}NM_QR

7.-()

8.-&&()


FAQ

Q1: What's your warranty time?

A: We offer 12 months warranty service, life time technique support.


Q2: What kind of packing do you send?

A: We use high quality cartons, internal environmental protection buffer material.


Q3: Can you provide some free samples?

A: Actually we have a very good price principle, when you make the bulk order then cost of sample will be return to you.


If you have any questions, pls feel free to contact us. We'll be sure to get back to you within an hour on a business day.

Send Inquiry

FAQ

The following are the common questions we have collected about CNC Controller.
1. Q: What services do you provide?
+
A: We offer one-stop service. We can customize the most suitable processing solution based on your ideas and product drawings. We have partnerships with major shipping companies such as DHL, FEDEX, and UPS to ensure timely delivery. Products can be delivered to you within 3-6 business days.
2. Q: What can you do for CNC machine tool retrofit and upgrade?
+

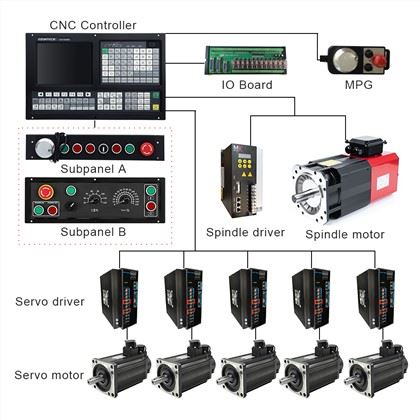

A: We can provide a complete CNC system. Our controller supports ATC and PLC and runs G-code. Support multiple languages, Russian, Spanish, English, Chinese, etc.The kit includes the controller, spindle servo motor and driver, servo motor drivers for each feed axis, and all standard cables, user manuals, and wiring diagrams. Our CNC control system is fully connected before shipment and tested 3-5 times for plug-and-play operation.
3. Q: What is your after-sales service like?
+
A: Our professional after-sales engineers provide 24-hour, one-on-one, free service. You don't have to worry about any after-sales issues.
4. Q: What optional accessories are available for CNC machine tools?
+
A: You can choose different accessories based on your machining needs. CNC Lathe:Servo turret, hydraulic chuck, manual chuck, Parts Catcher, Tailstock，guide bush,Flying knife disc,Tailstock,living tool,bar feeder, chip conveyor, etc. CNC Milling Machine: Fourth and fifth axis CNC rotary tables,Tailstock,BT30/BT40 holder, tool setters, probes, etc.
5.Q: How do you maintain the machine?
+
A: You must receive safety training before use. Regularly clean chips, check the air supply/oil pressure, lubricate the guideways, and inspect tool wear.
