Multi-axis composite machining all complex parts in one process, combined with high horsepower, high rigidity structure, fast processing and other characteristics, to provide you with efficient processing capabilities, can easily meet your cutting needs today and in the future. Equipped with Y-axis integrated moving head, side milling and end milling dual motor drive can be used in the same machine for turning, milling, drilling and other complex machining functions, but also for face and cylindrical profile milling.

Send Inquiry

CNC lathe manufacturers CNC machine tools

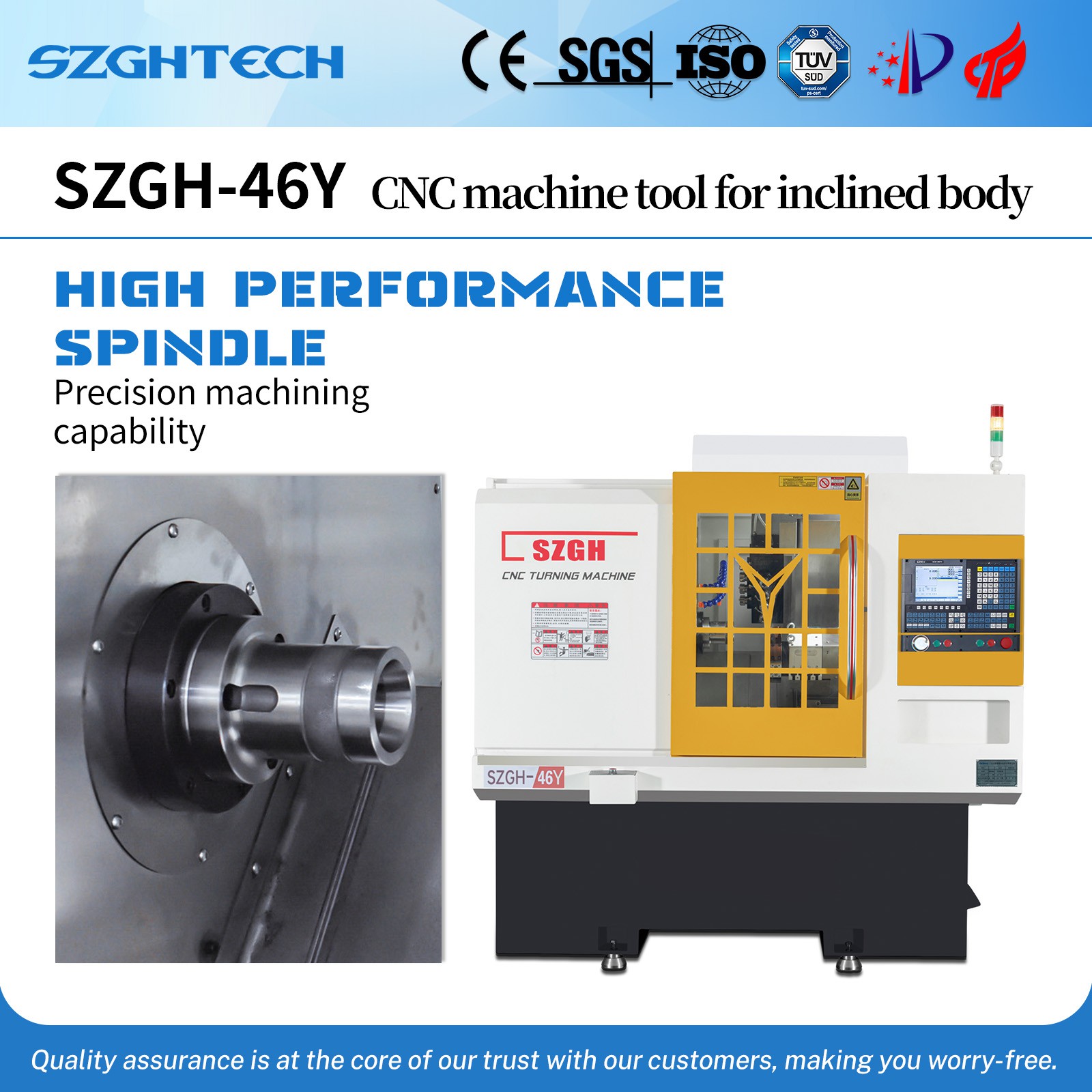

CNC machine tool for inclined body Precision machiningcapability

CNC machine tool product introduction：

X-Axis travel: 700MM

Z-Axis travel: 230MM

Cutting feed rate: 0.001-500mm/rev

X/Z axis displacement speed: 20m/min

X/Z axis repeat positioning accuracy: 0.001mm

X/Z axis guide rail: 25 Taiwan Shangyin/Kate linear guide rail

X/Z axis screw: 25 ground ball screw

X-axis servo motor: 130-1.0KW 4NW with brake

Z-axis servo motor: 130-1.0KW 4NW without brake

Spindle speed: 3000rpm/4000rpm

Spindle through hole diameter: 25mm/36mm

Clamping method: 25/36 chuck/6-inch hydraulic chuck

Main motor power: 3KW

Cooling method: automatic liquid cooling

Lubrication method: centralized intermittent oil lubrication

Control system: Yashu AC6F

Machine tool gross volume: 1800-2200kg

Machine size: L1900*W1330*H1920mm

Tools: Knife holder*3, extension rod*2
