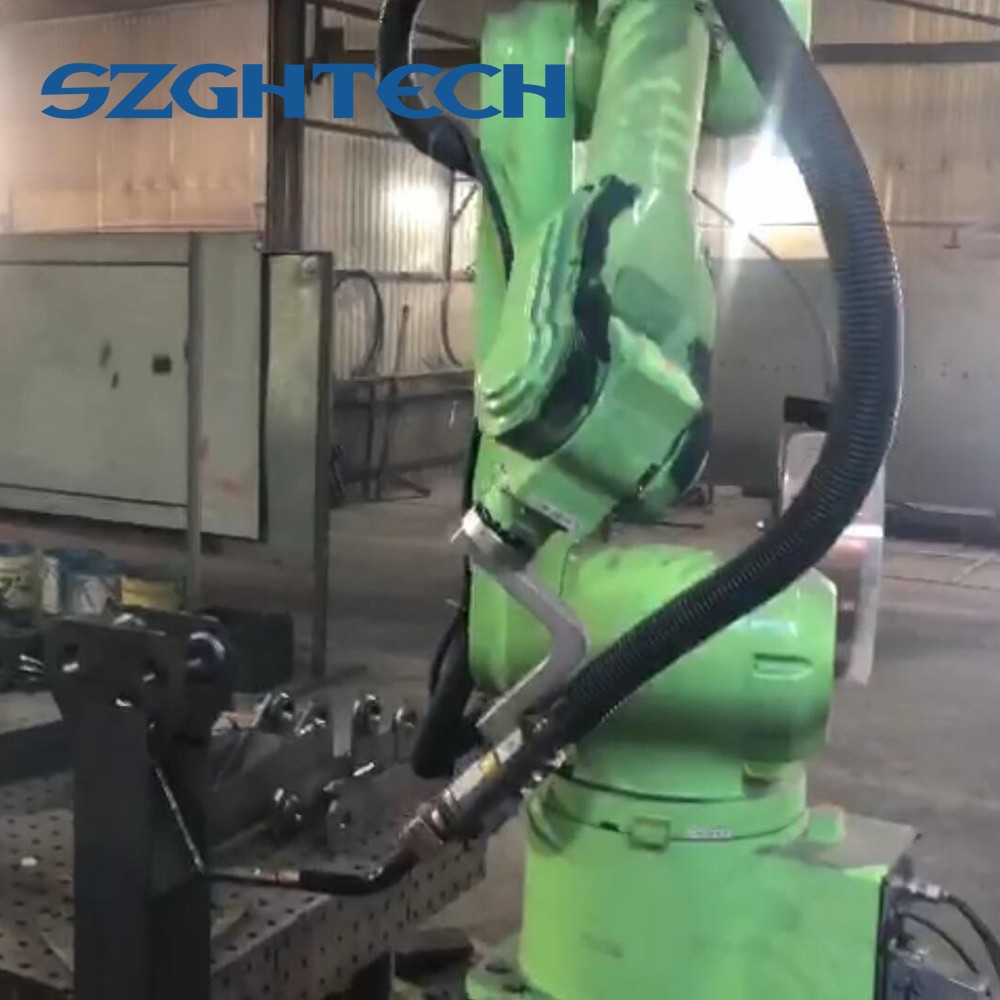

The Welding Robot Is Used Together With The Welding Fixture

At this stage, the traditional batch production mode is no longer suitable for the development needs of small and medium-sized enterprises, and has been replaced by the small batch mode. At the same time, the machining industry needs to work according to the specific conditions of the workpiece, and welding fixtures have become an important direction for new product development. Welding robots are the most common industrial robots in the welding process of enterprises. Therefore, welding fixtures play a very important role in the automation application of welding robots and are favored by the majority of users.

The production and processing of many weldments are completed by using welding robot systems. For small and medium-sized enterprises, they are faced with the need to change from manual welding to automated and intelligent welding or the existing welding processes and methods are not good. This will inevitably involve the design of the welding fixture. Let the ghzdh procurement assistant tell you why the welding robot is used in conjunction with the welding fixture:

1: The welding fixture of the welding robot has the characteristics of quick action and convenient operation. The operating position should be located where the operator can easily access and operate it. When the welding fixture is in the clamped state, it should have the function of self-locking.

2: The welding fixture should have enough space for assembly and welding, and all positioning parts and clamping mechanisms should keep an appropriate distance from the welding beads.

3: The welding jig must be clamped reliably and securely. The positioning position and geometry of the welding will not be damaged during clamping, the weldment will not loosen and slip after clamping, and the constraints on the weldment will not be too large to cause greater stress.

4: After clamping the welding fixture, the surface quality of the weldment should not be damaged. When clamping thinner parts, the clamping force should be limited or the stroke limit of the indenter should be adopted, the contact area of the indenter should be increased, and measures such as copper and aluminum and bushing should be added.

5: The force application point of the welding fixture of the welding robot should be located at the support of the weldment or close to the support to prevent the support reaction force and clamping force, and the support reaction force and gravity form a force couple.

6: In order to facilitate control, on the same welding fixture, the structure of the positioner and the clamping mechanism should not be too much, and only one power supply should be tried.

7: The welding fixture itself of the welding robot should have a better manufacturing process and higher mechanical efficiency.
