5 Axis Cnc Lathe Machine

"Revolutionize Your Production with the Cutting-Edge 5 Axis CNC Lathe Machine - Precision, Efficiency, and Innovation at Your Fingertips!"

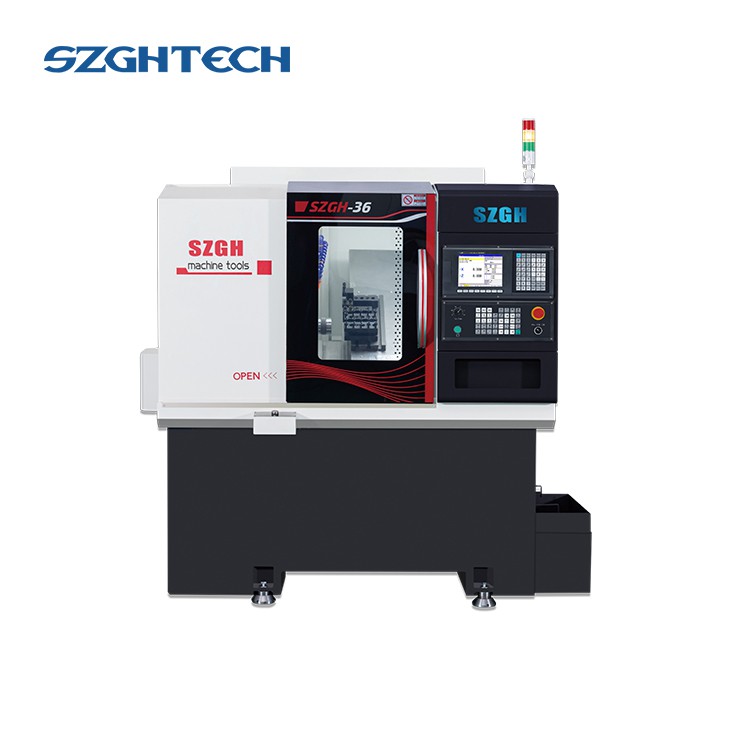

SZGH-36J 1000TDb

Configuration parameters:

X-axis travel:	700mm
Z-axis travel:	230mm
Y-axis travel:	50mm
Cutting feed speed:	0.001-500mm/rev
X/Z axis displacement speed:	20m/min
X/Z repeated positioning accuracy:	0.001mm
X/Z guide rail:	25 Taiwan Hiwin/Kate linear guide rail
X/Z axis screw:	25 ground ball screw
X-axis servo motor:	130-1.0KW 4NM with clamp
Z-axis servo motor:	130-1.0KW4NM without brake
Spindle speed:	3000rpm/4000rpm
Spindle through hole diameter:	25mm/36mmv
Clamping method:	25/36 chuck/6 inch hydraulic chuck
Spindle motor power:	3KW
Cooling method:	automatic liquid cooling
Lubrication method:	centralized intermittent oil lubrication
Control System:	SZGH-1000TDb-2
Machine tool gross weight:	1800-2200KG
Machine size:	L1900W1330H1920mm
Tool:	Tool holder3, extension rod2

product details：

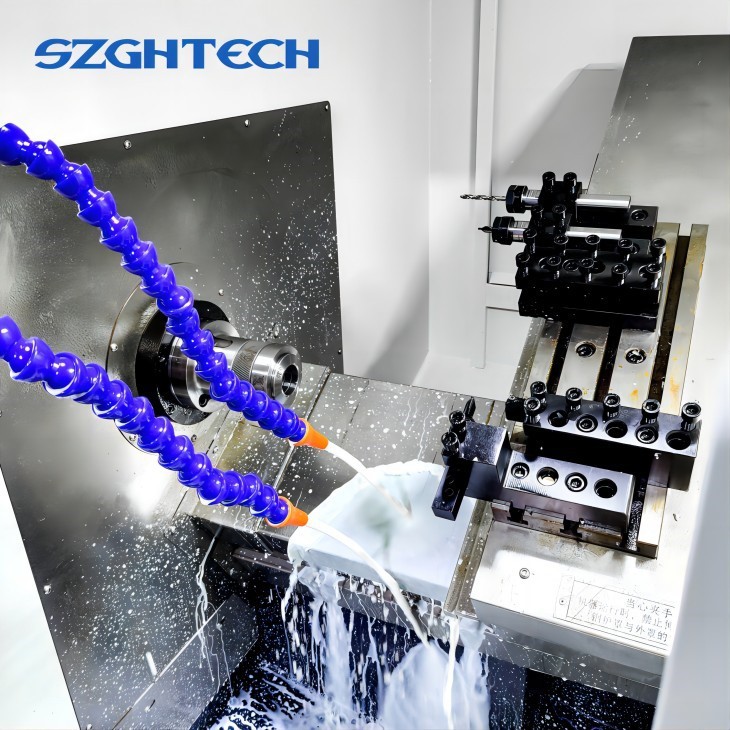

Heavy-duty front assembly

Reinforced head box, more stable rod passage, maze-type reinforced waterproof structure, universal for pellets and rods, supports 8-inch hydraulic chuck.

External hydraulic supply unit

It adopts the hydraulic cylinder clamping method. The hydraulic supply unit is designed externally, the oil tank capacity is increased, the heat dissipation is better, and the work is more stable.
