SZGH CNC Milling Controller And Lathe Controller

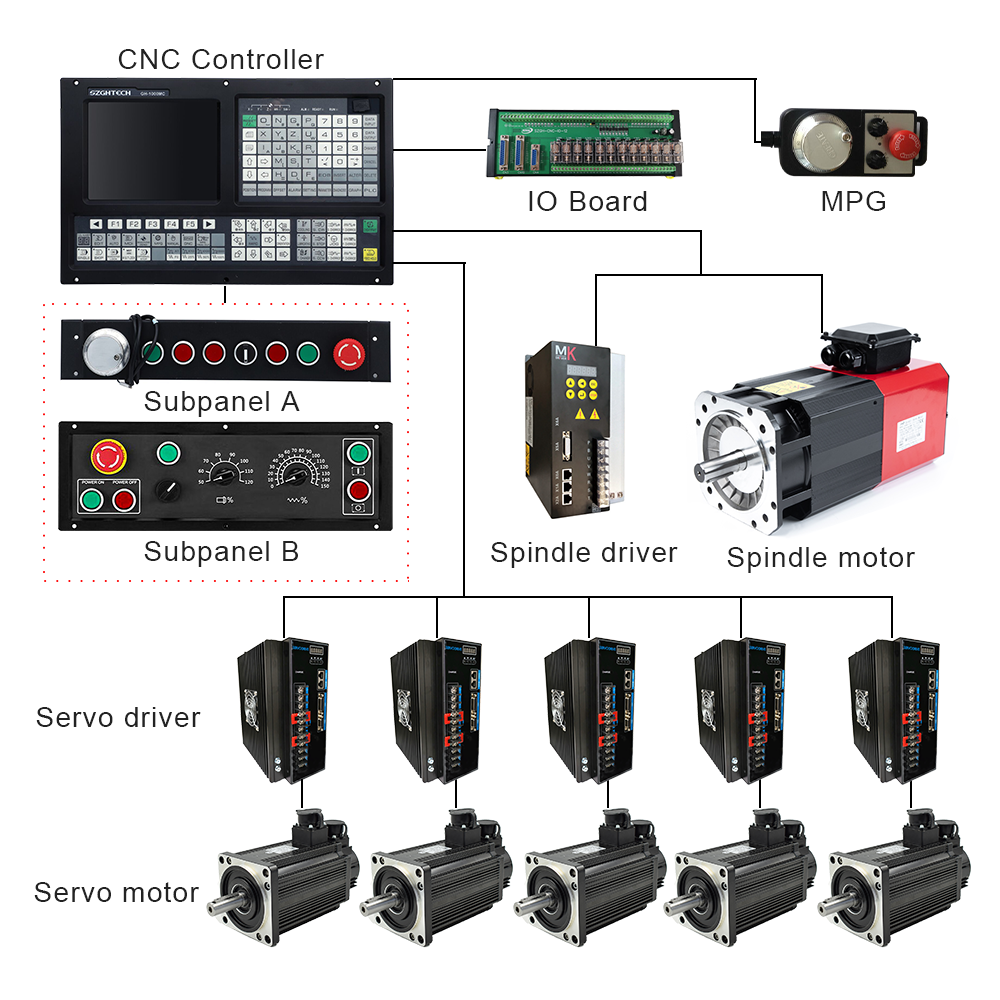

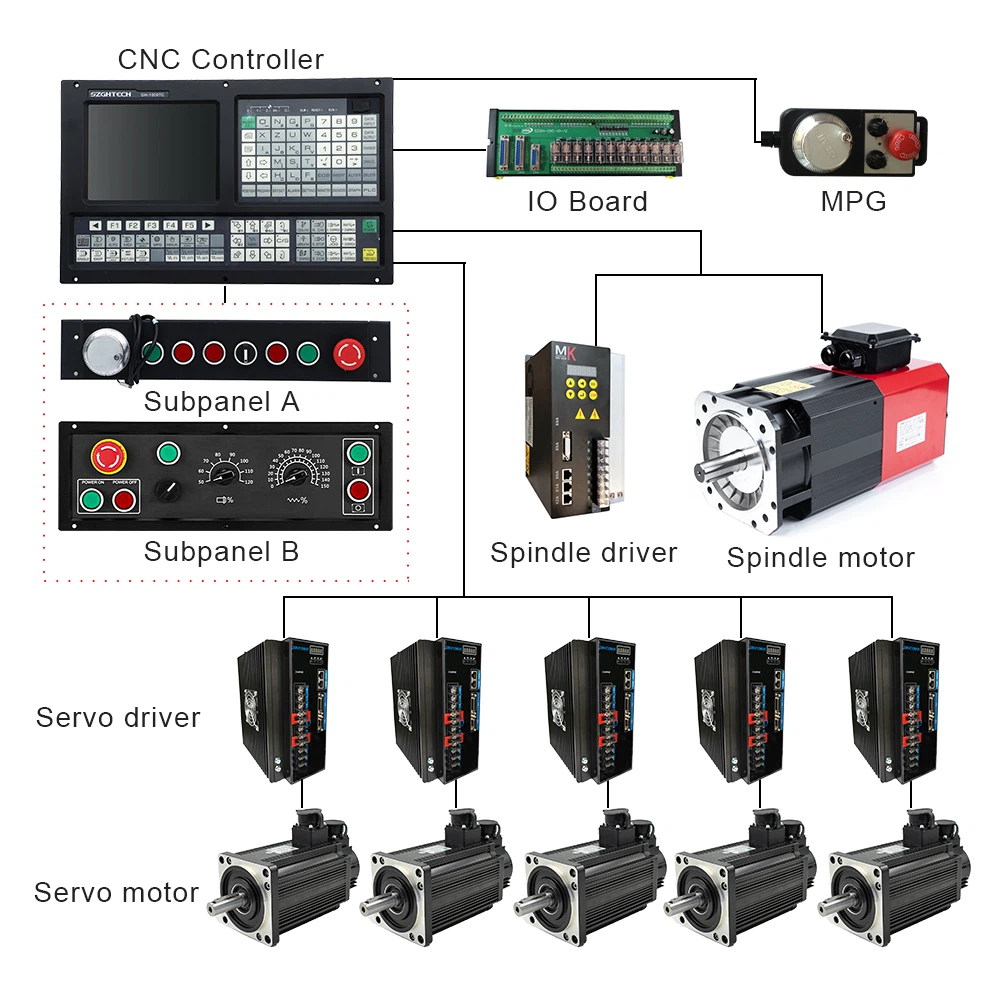

CNC Controller, including economic type, standard type, high-performance type and Modbus type( which can support EtherCAT/Powerlink). It can be 16 axes at max.

CNC lathe Controller function:

1)ATC function: Electric Turret/Binary Turret/Servo Turret/Special Turret

2)Threading Cycle: Following Mode/Interpolate Mode

3) Support Dual analog voltage(0~10V) & C-axis for Spindle servo(M800)

4) Support Stepper/Increment/Absolute/EtherCAT/Powerlink Servo for Feeding Axes

5) Scanning Function & Auto Tool Setter/Probe

CNC Milling Controller function:
1)ATC function: Umbrella Type/Arm Type/Linear Type/Servo Type/Special Tool Magazine

2) Support Rigid Tapping: Following Mode/Interpolate Mode

3) Support Dual analog voltage(0~10V)& C-axis for Spindle servo

4) Support RTCP mode

5) Support Stepper/Increment/Absolute/EtherCAT/Powerlink Servo for Feeding Axes

6) Scanning Function & Follow Mode & Auto Tool Setter/Probe
